O32-15D44 15' x 4" x .188" Outrigger Wall Mount Series
External Single Stationary - Rope Halyard
- Satin flagpoles are generally in stock – lead time 7-10 business days; If not in stock, may require 4 -6 week lead time.
- Anodized flagpoles require 4 week lead time.
- Powder coat flagpoles require 2-3 week lead time.
Description
A wall-mounted flagpole (6-20 ft) with an external rope halyard. Enhances building facades and features a cast aluminum stationary truck.
The Outrigger Single Stationary Series offers wall mounted flagpole options in lengths of 6' to 20'. A variety of Wall Mount design and angle options give project owners the ability to enhance any building facade with the customized look and beauty of aluminum flagpoles.
Standard Specifications
- Patented, Heavy-Duty Gold Anodized Aluminum Ball

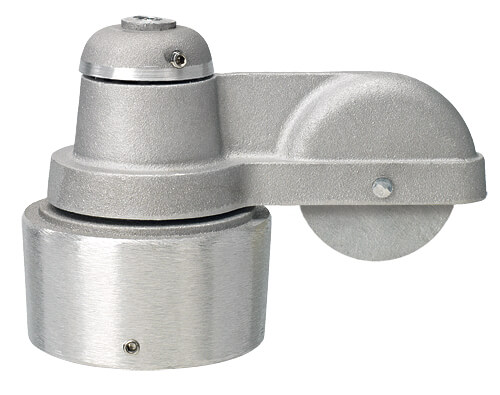

- Cast Aluminum Single Stationary Truck Assembly with Aluminum Pulley
- Complete External Halyard Assembly
- Rope Halyard – 5/16" #10 Polyester
- Two (2) Solid Brass Swivel Flagsnaps
- Two (2) Neoprene Flagsnap Covers
- 9" Cast Aluminum Cleat
- 3/8" Eyebolt and Double Swivel Pulley
- Anchorage by Others
Technical Specifications
- Brand
- Concord American
- Model
- O32-15D44
- Bracket
- O-32
- Arm Angle
- 45°
- Pole Shaft
- Tapered
- Nominal Overall Length
- 15'
- Butt Dia.
- 4"
- Wall Thickness
- .188"
- Pole Sections
- 1
- Top Dia.
- 2.5"
Finish Options
Satin Aluminum Finish
Our aluminum flagpoles are crafted from Aluminum Alloy 6063, a marine-grade alloy known for its exceptional corrosion resistance. When exposed to air, aluminum naturally forms a protective layer of aluminum oxide, which defends against corrosion and maintains the flagpole's aesthetic appeal over its lifetime, even without additional finishing.
The satin aluminum finish is achieved through a multi-pass mechanical rotary sanding process using specialized abrasives. This meticulous method ensures a consistent, brushed aluminum appearance that has become the industry's preferred choice for a low-maintenance and durable flagpole finish.
Satin - SAT
Anodized Finish
Standard anodized finishes for flagpoles include clear, dark bronze, and black.
Clear Anodized - ACL
Dark Bronze Anodized - ADB
Black Anodized - ABL
Powder Coat Finish
Standard powder coat finishes include clear, bronzetone, black, and white.
For custom colors, provide an RAL color number or a color chip sample, and we can create the perfect powder coat color for your project.
Black Powder Coat - BLK
BronzeTone Powder Coat - BZT
White Powder Coat - WHT
Clear Powder Coat - CLR
