Internal Flagpole Trucks

Internal Flagpole Trucks are positioned at the top of the flagpole and feature a design that encloses either rope halyard or wire halyard within the flagpole shaft, secured behind a lockable access door.

Stationary Truck Concord American

Stationary Truck

From $88

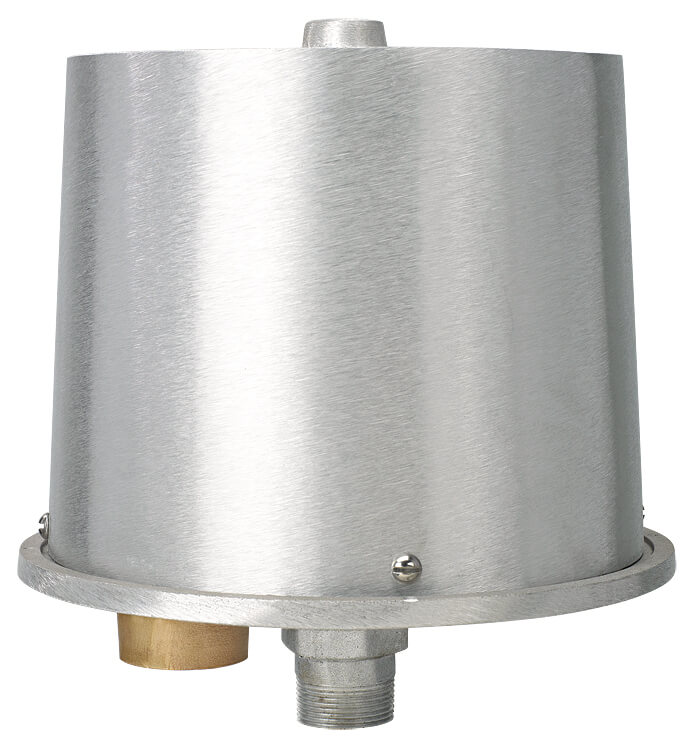

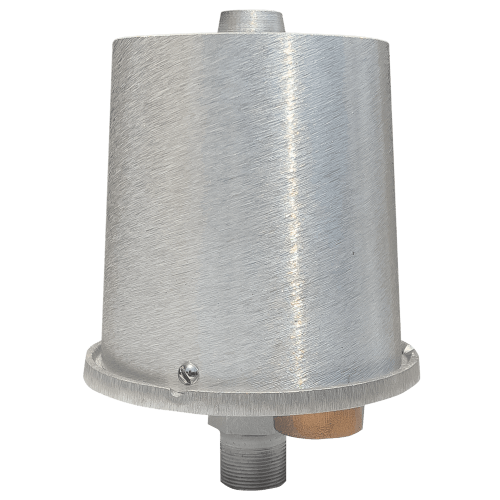

Cone Style Revolving Truck Concord American

Cone Style Revolving Truck

From $290
Cast Ball Truck Concord American

Cast Ball Truck

From $435
IH-1 Series Truck Eder

IH-1 Series Truck

From $92
IH-2 Series Truck Eder

IH-2 Series Truck

From $321
IHT-VS Series Truck Eder

IHT-VS Series Truck

From $126

Internal Flagpole Trucks

Internal Flagpole Trucks sit at the top of the flagpole, providing a system that encloses either Rope Halyard (Cam Cleat Systems) or Wire Halyard (Winch Systems) behind the security of a lockable access door.

All Trucks are designed to accept Balls, Eagles and Finials. Internal Trucks are offered in Stationary and Revolving options in either Cap Style or Threaded Spindle designs.

Powder Coat Finish Options

BZT = Powder Coat – BronzeTone
BLK = Powder Coat – Black
WHT = Powder Coat – White
CLR = Powder Coat – Clear

Internal Halyard Flagpole Truck Example
Internal Stationary Truck - Cap Design Example
Internal Single Stationary
Cap Design

Cap Design Trucks install over the top of the flagpole and are attached with anchoring set screws or bolts.

Stationary Trucks are fixed and will not rotate.

Internal Revolving Truck - Spindle Design Example
Internal Revolving
Spindle Design

Spindle Design Trucks incorporate a threaded spindle which is installed into a female fitting welded into the top of the flagpole.

Revolving Trucks rotate the flag with the wind.
