Standard Cone Style Revolving Truck

Rope or Wire Halyard

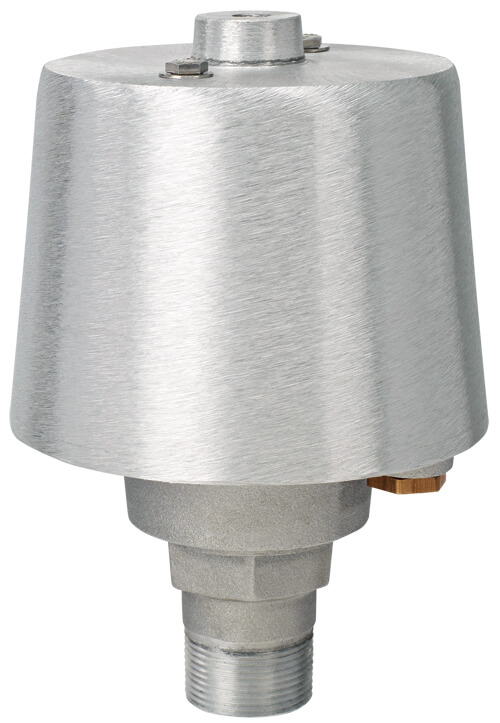

Standard Cone Style Revolving Truck 1

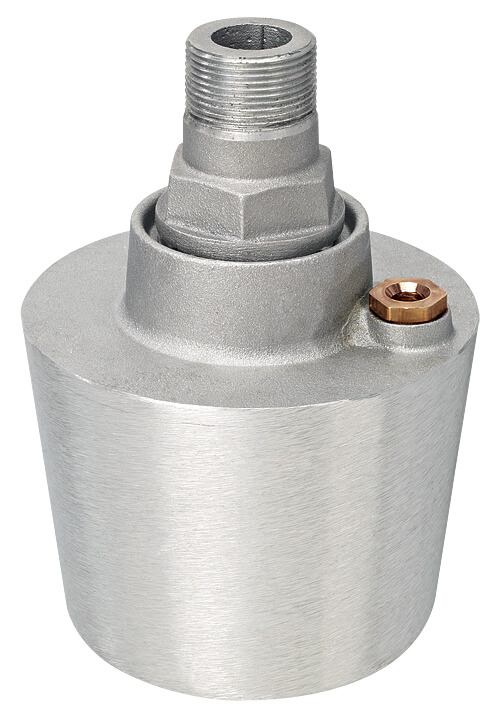

Standard Cone Style Revolving Truck 2
Standard Cone Style Revolving Truck 1

Description

A heavy-duty cast aluminum cone style revolving truck for rope or wire halyard systems. Features a two-piece, removable hood design with a cast brass exit bushing.

  • Constructed from heavy Cast Aluminum in a two-piece, removable hood design
  • Internal, Cast Aluminum Pulley
  • Cast Brass Halyard Exit Bushing reduces wear, significantly increasing Truck life
  • Includes Dual SEALED Bearing Assemblies
  • 1-1/4" NPT Spindle. Heavy-Duty Stainless Steel Spindle option available.
  • 1/2"-13"NC Top Drilling (5/8"-11NC Available)

Choose Size

Model Description Max Shaft Top Diameter Spindle Top Drilling For Use With Price View
TRK-9660 SMALL - Dual SEALED Bearing Assemblies 3-1/2" 1-1/4" NPT 1/2"-13"NC Rope or Wire Halyard Flagpole Systems $454 View
TRK-9660-58 SMALL - Dual SEALED Bearing Assemblies 3-1/2" 1-1/4" NPT 5/8"-11"NC Rope or Wire Halyard Flagpole Systems $454 View
TRK-9660SS SMALL - Dual SEALED Bearing Assemblies 3-1/2" Stainless Steel, 1-1/4" NPT (Heavy-Duty) 1/2"-13"NC Rope or Wire Halyard Flagpole Systems $760 View
TRK-9660SS-58 SMALL - Dual SEALED Bearing Assemblies 3-1/2" Stainless Steel, 1-1/4" NPT (Heavy-Duty) 5/8"-11"NC Rope or Wire Halyard Flagpole Systems $760 View

Internal Halyard Trucks

Internal Halyard Trucks sit at the top of the flagpole, providing a system that encloses either Rope Halyard (Cam Cleat Systems) or Wire Halyard (Winch Systems) behind the security of a lockable access door.

All Trucks are designed to accept Balls, Eagles and Finials. Internal Trucks are offered in Stationary and Revolving options in either Cap Style or Threaded Spindle designs.

Powder Coat Finish Options

BZT = Powder Coat – BronzeTone
BLK = Powder Coat – Black
WHT = Powder Coat – White
CLR = Powder Coat – Clear

Internal Halyard Flagpole Truck Example
Internal Stationary Truck - Cap Design Example

Internal Single Stationary
Cap Design

Cap Design Trucks install over the top of the flagpole and are attached with anchoring set screws or bolts.

Stationary Trucks are fixed and will not rotate.

Internal Revolving Truck - Spindle Design Example

Internal Revolving
Spindle Design

Spindle Design Trucks incorporate a threaded spindle which is installed into a female fitting welded into the top of the flagpole.

Revolving Trucks rotate the flag with the wind.
