Vanguard Series
Internal Halyard Ground Set Cone Tapered Aluminum Flagpoles
The Vanguard Series from Eder Flag Manufacturing Company provides an intelligent, economical alternative to deluxe concealed halyard systems.

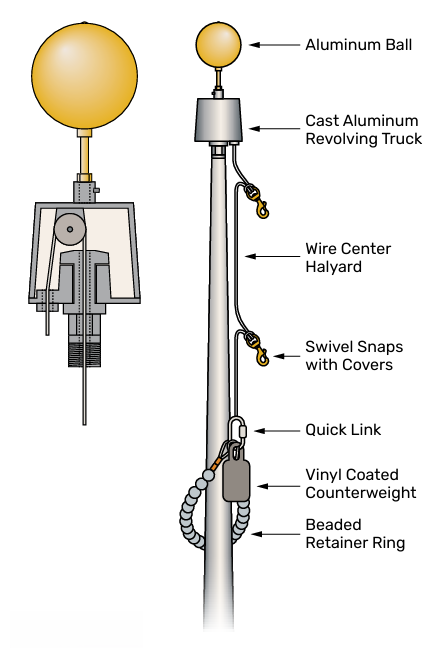

Standard Accessories
- Gold anodized aluminum ball ornament
- Cast aluminum revolving truck on all flagpole models
- Nylon wire center halyard
- Swivel flag snaps w/vinyl snap covers
- Retainer ring and counterweight
- Stainless steel quick link
- Cam action cleat (accessible behind a lockable access door)
- Spun aluminum flash collar
- Galvanized steel foundation sleeve
5" diameter poles supplied with a hinged access door and frame unit.
6" and larger diameter poles supplied with a removable flush-mounted access door for added strength.
Vanguard Series
The table below assumes . Your specific location may be different. Use the Wind Speed Map to choose a different maximum wind speed. Flagpoles not rated for these conditions will appear in red.
| Model | Mtg. Hgt. | Butt Dia. | Wall Thickness | Pole Sections | Std. Flag Size | Max Wind Speed w/Nylon Flag | Max Wind Speed No Flag | Price (Satin) |
|---|---|---|---|---|---|---|---|---|
| ECXV20 | 20' | 5" | .125" | 1 | 3' x 5' | 120 mph | 250 mph | $2,400 |
| ECV20 | 20' | 5" | .188" | 1 | 3' x 5' | 120 mph | 315 mph | $2,516 |
| ECXV25 | 25' | 5" | .125" | 1 | 4' x 6' | 104 mph | 144 mph | $2,571 |
| ECXAV25 | 25' | 5" | .156" | 1 | 4' x 6' | 117 mph | 192 mph | $2,714 |
| ECV25 | 25' | 6" | .188" | 1 | 4' x 6' | 120 mph | 222 mph | $3,409 |
| ECXV30 | 30' | 5" | .125" | 2 | 5' x 8' | 75 mph | 110 mph | $2,733 |
| ECXAV30 | 30' | 5" | .156" | 2 | 5' x 8' | 91 mph | 119 mph | $2,973 |
| ECLV30 | 30' | 5" | .188" | 1 | 5' x 8' | 96 mph | 127 mph | $3,363 |
| ECAV30 | 30' | 6" | .156" | 1 | 5' x 8' | 117 mph | 184 mph | $3,324 |
| ECV30 | 30' | 6" | .188" | 1 | 5' x 8' | 120 mph | 211 mph | $3,511 |
| ECXV35 | 35' | 6" | .156" | 1 | 6' x 10' | 91 mph | 122 mph | $3,611 |
| ECAV35 | 35' | 7" | .156" | 1 | 6' x 10' | 117 mph | 179 mph | $3,970 |
| ECV35 | 35' | 7" | .188" | 1 | 6' x 10' | 120 mph | 200 mph | $4,548 |
| ECXV40 | 40' | 7" | .156" | 2 | 8' x 12' | 91 mph | 125 mph | $4,896 |
| ECV40 | 40' | 8" | .188" | 2 | 8' x 12' | 120 mph | 195 mph | $6,035 |
