IRC30D61 30' x 6" x .188" Sentry II Series - IRC
Internal Reinforced with Cam Cleat - Rope Halyard
Disclaimer
- Satin is generally in stock – lead time 7-10 business days; If not in stock, may require 4 -6 week lead time.
- Anodized Finishes require 4 week lead time.
- Powder Finishes require 2-3 week lead time.
Description
The Sentry II Series from Concord American Flagpole is the perfect choice when your project calls for a commercial grade flagpole utilizing an Internal Rope Halyard and Cam Cleat system. Offered in heights of 20′ to 40′, the reinforced welded door frame delivers exceptional strength, combining security with the superior aesthetics achieved from the lockable flush mount door.
Standard Specifications
- Patented, Heavy-Duty Gold Anodized Aluminum Ball
- Cast Aluminum Revolving Truck with SEALED Stainless Steel Bearing Assemblies, Aluminum Spindle, Cast Brass Exit Bushing and Removable Hood
- Complete Internal Halyard Assembly
- Rope Halyard – 5/16" #10 Polyester
- Two (2) Stainless Steel Swivel Flagsnaps
- Two (2) Neoprene Flagsnap Covers
- Cam Cleat
- Reinforced Welded Door Frame
- Flush Mount Access Door with Lock and Keys
- Spun Aluminum FC-11 Flash Collar
- Galvanized 16-Gauge Corrugated Steel Ground Sleeve with Steel Grounding Spike
Reinforced Welded Door Frame
Sentry II Flagpoles are engineered with an inset reinforced aluminum door frame welded into the precision cut door opening, providing additional strength and higher max wind speeds from each butt diameter/wall thickness combination. The efficiency of this design produces maximum strength-to-size ratios while providing a smooth, flush fitting door, making our Sentry II IRC flagpoles the ideal choice in many applications.
For additional Cam Cleat option flagpoles, see Monarch ICC Flush Mount Hinged Door Design and Sentry ISC Raised Reinforced Door Frame.
Included Components
- One (1) TRK-9660 3-1/2" Cone Style Revolving Truck
- One (1) BAL-0612 6" Heavy-Duty Aluminum Flagpole Ball
- One (1) COL1-A06S 6" x 14" STYLE A, FC11 Spun Aluminum Collar
- Two (2) SNP-0700 3-1/2" Stainless Steel Flagsnap
- Two (2) SNP-0500 Flagsnap Cover
- One (1) RHA-0300 30' Internal Halyard Cam Cleat Rope Assembly
- One (1) CWA-9200 6.5 lbs. Counterweight
- One (1) RRA-0006 6" Retainer Ring Assembly
- Two (2) LNK-0300 Connecting Link
- One (1) GCA-3010 3' x 10" Steel Ground Sleeve
Technical Specifications
- Brand
- Concord American
- Model
- IRC30D61
- Mtg. Hgt.
- 30'
- Butt Dia.
- 6"
- Wall Thickness
- .188"
- Pole Sections
- 1
- Set Depth
- 3'0"
- Top Dia.
- 3.5"
- Std. Flag Size
- 6' x 10'
- Max Wind Speed w/Nylon Flag
- 122 mph
- Max Wind Speed w/Polyester Flag
- 110 mph
- Max Wind Speed w/Two Flags
- 106 mph
- Max Wind Speed No Flag
- 197 mph
Compare with similar items
|
This Item
|
Recommended
|
|||
IRC30D61
|
ICC30D61
|
ISC30D61
|
ECV30
|
|
| View | View | View | View | |
| Price | $3,494 | $3,245 | $3,327 | $3,511 |
| Brand | Concord American | Concord American | Concord American | Eder |
| Model | IRC30D61 | ICC30D61 | ISC30D61 | ECV30 |
| Features |
|
|
|
|
| Mtg. Hgt. | 30' | 30' | 30' | 30' |
| Butt Dia. | 6" | 6" | 6" | 6" |
| Wall Thickness | .188" | .188" | .188" | .188" |
| Pole Sections | 1 | 1 | 1 | 1 |
| Set Depth | 3'0" | 3'0" | 3'0" | 3'0" |
| Top Dia. | 3.5" | 3.5" | 3.5" | 3.5" |
| Std. Flag Size | 6' x 10' | 6' x 10' | 6' x 10' | 5' x 8' |
| Max Wind Speed w/Nylon Flag | 122 mph | 102 mph | 122 mph | 120 mph |
| Max Wind Speed No Flag | 197 mph | 170 mph | 197 mph | 211 mph |
Suggested US Flags & Custom Flags
- Std. Flag Size: 6' x 10'
Suggested Flagpole Lights
- Top Dia.: 3.5"

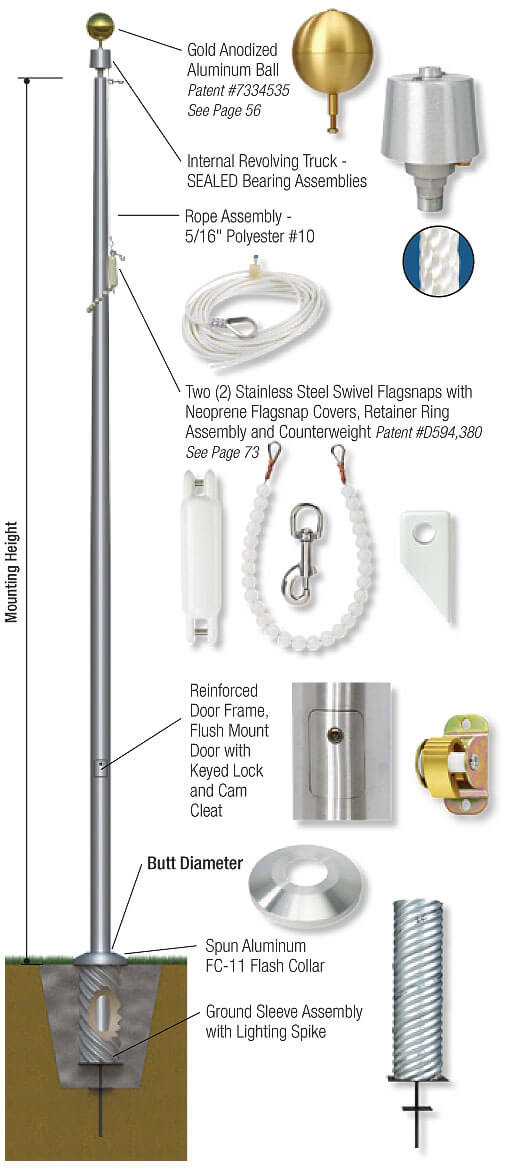

Components of IRC30D61 Sentry II Series - IRC
Finish Options
Satin Aluminum Finish
Our aluminum flagpoles are crafted from Aluminum Alloy 6063, a marine-grade alloy known for its exceptional corrosion resistance. When exposed to air, aluminum naturally forms a protective layer of aluminum oxide, which defends against corrosion and maintains the flagpole's aesthetic appeal over its lifetime, even without additional finishing.
The satin aluminum finish is achieved through a multi-pass mechanical rotary sanding process using specialized abrasives. This meticulous method ensures a consistent, brushed aluminum appearance that has become the industry's preferred choice for a low-maintenance and durable flagpole finish.
Satin - SAT
Anodized Finish
Standard anodized finishes for flagpoles include clear, dark bronze, and black.
Clear Anodized - ACL
Dark Bronze Anodized - ADB
Black Anodized - ABL
Powder Coat Finish
Standard powder coat finishes include clear, bronzetone, black, and white.
For custom colors, provide an RAL color number or a color chip sample, and we can create the perfect powder coat color for your project.
Black Powder Coat - BLK
BronzeTone Powder Coat - BZT
White Powder Coat - WHT
Clear Powder Coat - CLR
Flagpole Shaft Descriptions
Mounting Height
The mounting height is the exposed height of the flagpole measured from the ground to the top of the flagpole shaft. Please note that with the addition of trucks and ornaments, the overall height can increase by 1 to 2 feet, which may be important in areas with height restrictions. If needed, mounting heights can be adjusted upon request at no additional charge to meet specific overall height requirements.
25' Mounting Height Exception
Flagpoles with a 25' mounting height are produced in a single piece with an overall length of 26'-6". Of this length, 2'-6" is embedded below grade into the ground sleeve. Once the truck and finial are installed, the flagpole's nominal height will be 25'. This standard design facilitates shipping in a pup trailer, resulting in considerable freight savings. If needed, full 27'-6" shafts are available upon request.
Butt Diameter
The diameter in inches at the base of the flagpole shaft.
Top Diameter
The diameter in inches at the top of the flagpole shaft.
Wall Thickness
The thickness of the flagpole shaft in inches, varying from .125" to .500".
Single & Multi-Piece Flagpole Shafts
Flagpoles are offered in both single-piece and multi-piece designs. For flagpoles 45' and taller, the shafts are typically multi-piece based on the mounting height. These sections can be easily assembled on-site without compromising structural integrity, resulting in only a hairline joint that indicates the flagpole is not a single-piece unit.
