ECA40IH 40' x 8" x .156" Deluxe IH Series
Internal Halyard Ground Set Cone Tapered Aluminum Flagpoles
Disclaimer
- Flagpoles in stock – lead time 2 weeks.
- If not in stock, may require 8-10 week lead time, plus 6-8 weeks for anodizing.
Description

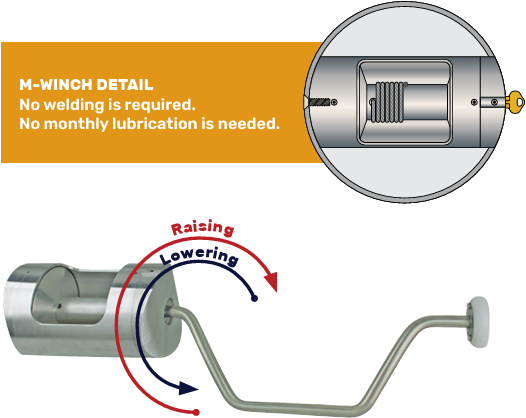

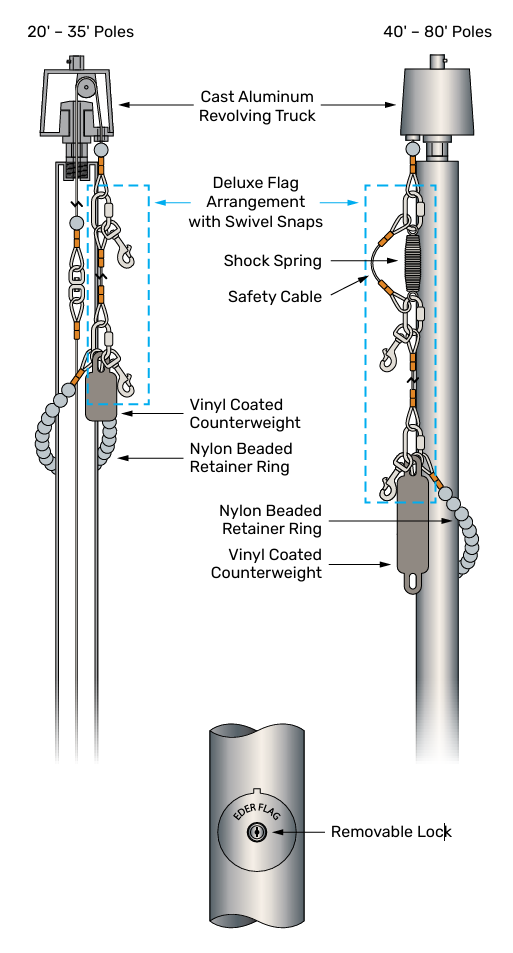

The Deluxe IH Series from Eder Flag Manufacturing Company contains a winch mounted inside the flagpole shaft, operable only with a removable crank handle. As the stainless steel cable unwinds from the winch, it passes up through the inside of the flagpole shaft, over the truck sheave to the outside of the shaft, where the retainer ring provides a sliding anchor. A counterweight, heavily coated with neoprene, attached to the retainer ring, allows the halyard to be lowered for fastening or removing the flag. The winch is gearless and self-locking at any point, eliminating the need for a separate brake. This direct drive winch provides rapid raising and lowering of the flag with little effort. This design does not require any welding, thus avoiding discoloration when an anodized finish is desired. No monthly lubrication is needed and this winch system is easily adaptable to existing on-site flagpoles.
Standard Accessories
- Cast aluminum revolving truck with enclosed stainless steel bearings and raceway
- Stainless Steel Cable Assembly
- Deluxe Flag Arrangement
- Retainer ring and counterweight

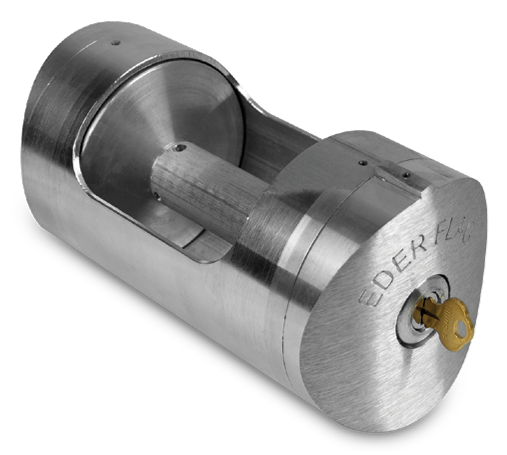

- M-Winch System
- Spun aluminum flash collar
- Galvanized steel foundation sleeve
Technical Specifications
- Brand
- Eder
- Model
- ECA40IH
- Mtg. Hgt.
- 40'
- Butt Dia.
- 8"
- Wall Thickness
- .156"
- Pole Sections
- 2
- Set Depth
- 4'0"
- Top Dia.
- 3.5"
- Std. Flag Size
- 8' x 12'
- Max Wind Speed w/Nylon Flag
- 110 mph
- Max Wind Speed No Flag
- 171 mph
- Overall Length
- 44'
- Shipping Weight
- 319 lbs.
Documents
Compare with similar items
|
This Item
|
Recommended
|
||
|
ECA40IH
40' x 8" x .156" Deluxe IH Series |
IWW40C81
40' x 8" x .156" Titan Series Flagpole - IWW |
IRW40C81
40' x 8" x .156" Independence Series - IRW |
|
| View | View | View | |
| Price | $7,072 | $5,478 | $5,975 |
| Brand | Eder | Concord American | Concord American |
| Model | ECA40IH | IWW40C81 | IRW40C81 |
| Features |
|
|
|
| Mtg. Hgt. | 40' | 40' | 40' |
| Butt Dia. | 8" | 8" | 8" |
| Wall Thickness | .156" | .156" | .156" |
| Pole Sections | 2 | 1 | 1 |
| Set Depth | 4'0" | 4'0" | 4'-0" |
| Top Dia. | 3.5" | 4" | 4" |
| Std. Flag Size | 8' x 12' | 8' x 12' | 8' x 12' |
| Max Wind Speed w/Nylon Flag | 110 mph | 81 mph | 107 mph |
| Max Wind Speed No Flag | 171 mph | 113 mph | 157 mph |
Suggested US Flags
- Std. Flag Size: 8' x 12'
